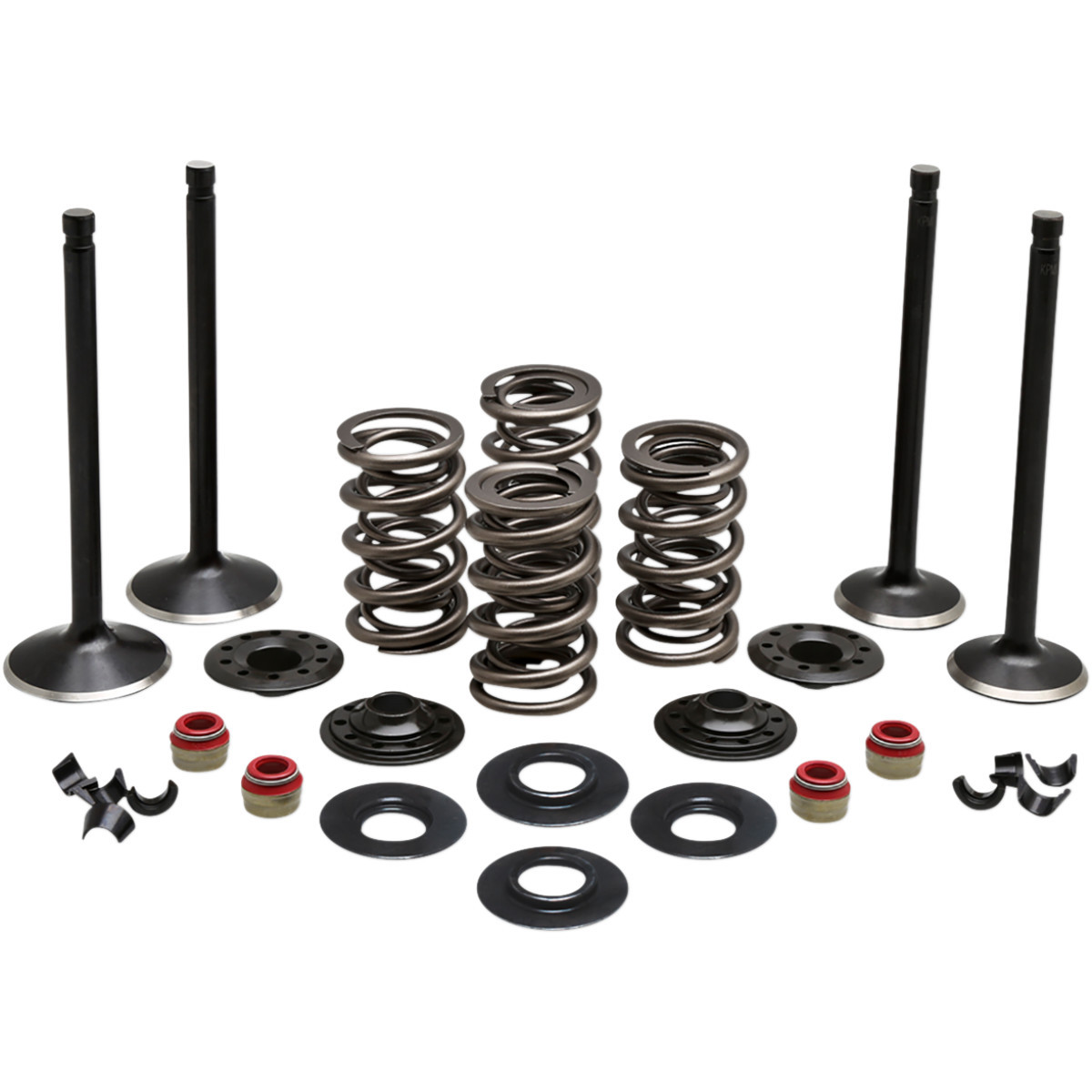

Kit Includes:
• 2x Intake Valves
• 2x Exhaust Valves
• 4x Intake and Exhaust Retainers
• 4x Pairs of Intake and Exhaust Keepers
• 4x Intake and Exhaust Valve Springs
• 4x Intake and Exhaust Base Washers
• 4x Intake and Exhaust Red Vinton® Seals
Features
- Kits include KPMI® or equivalent valve spring kit, a full set of Black Diamond™stainless steel standard size valves and are black nitride coated, H.T. (Heat Treated) steel valve keepers and valve stem seals (where applicable) for engine applications listed
- Black Diamond™ valves are one piece forged stainless steel that are fortified by a special German process to improve wear properties and reduce friction
- White Diamond® valves are CNC machined from one-piece forging of either EV8 stainless steel or Inconel-751 and are hard chromed with 360° anode to produce a hard chrome finish
- Compatible with leaded and unleaded fuels
- Sold as complete kit for one engine
- Made in the USA
Specs
| Head Diameter | Intake 40.26 mm, Exhaust 34.29 mm |
| Spring Lift | 0,600" |
| Tulip Angle | Intake 23°, Exhaust 29° |
| Application | Intake |
| Stem Diameter | Intake 7.90 mm, Exhaust 7.90 mm |
| Units | Kit |
| Riding Style | Street |
| Spring Seat Pressure | 163 lb |
| Spring Open Pressure | 361 lb |
| Collar Material | H.T. Steel |
| Length | Intake 4.550", Exhaust 4.640" |
| Material | Black Diamond™ Stainless |
| Product Name | Engine Kit |
| Valve Seat Height | 1.810" |
| Year | Make | Model |
|---|---|---|
| 1986 | Harley-Davidson | XLH883 |
| 1986 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1987 | Harley-Davidson | Sportster 883 XLH |
| 1987 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1987 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1988 | Harley-Davidson | XLH883 |
| 1988 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1988 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1989 | Harley-Davidson | Sportster 883 XLH |
| 1989 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1989 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1990 | Harley-Davidson | Sportster 883 XLH |
| 1990 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1990 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1991 | Harley-Davidson | Sportster 883 XLH |
| 1991 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1991 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1992 | Harley-Davidson | Sportster 883 XLH |
| 1992 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1992 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1993 | Harley-Davidson | Sportster 883 XLH |
| 1993 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1993 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1994 | Harley-Davidson | Sportster 883 XLH |
| 1994 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1994 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1995 | Harley-Davidson | Sportster 883 XLH |
| 1995 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1995 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1996 | Harley-Davidson | Sportster 883 XLH |
| 1996 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1997 | Harley-Davidson | Sportster 883 XLH |
| 1997 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1998 | Harley-Davidson | 883 Custom XLC |
| 1998 | Harley-Davidson | Sportster 883 XLH |
| 1998 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1999 | Harley-Davidson | 883 Custom EFI XLC |
| 1999 | Harley-Davidson | Sportster 883 XLH |
| 1999 | Harley-Davidson | XL883C Sportster 883 Custom |
| 1999 | Harley-Davidson | XLH883 |
| 2000 | Harley-Davidson | 883 Custom EFI XLC |
| 2000 | Harley-Davidson | Sportster 883 XLH |
| 2000 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2000 | Harley-Davidson | XLH883 |
| 2001 | Harley-Davidson | 883 Custom EFI XLC |
| 2001 | Harley-Davidson | Sportster 883 XLH |
| 2001 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2001 | Harley-Davidson | XLH883 |
| 2002 | Harley-Davidson | 883 Custom EFI XLC |
| 2002 | Harley-Davidson | 883 Roadster EFI XLR |
| 2002 | Harley-Davidson | Sportster 883 XLH |
| 2002 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2002 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 2002 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 2003 | Harley-Davidson | 883 Custom EFI XLC |
| 2003 | Harley-Davidson | 883 Roadster EFI XLR |
| 2003 | Harley-Davidson | Sportster 883 XLH |
| 2003 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2003 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 2003 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
Fitment details provided by supplier.
Product Videos
Custom Field
Material Black Diamond™ Stainless
