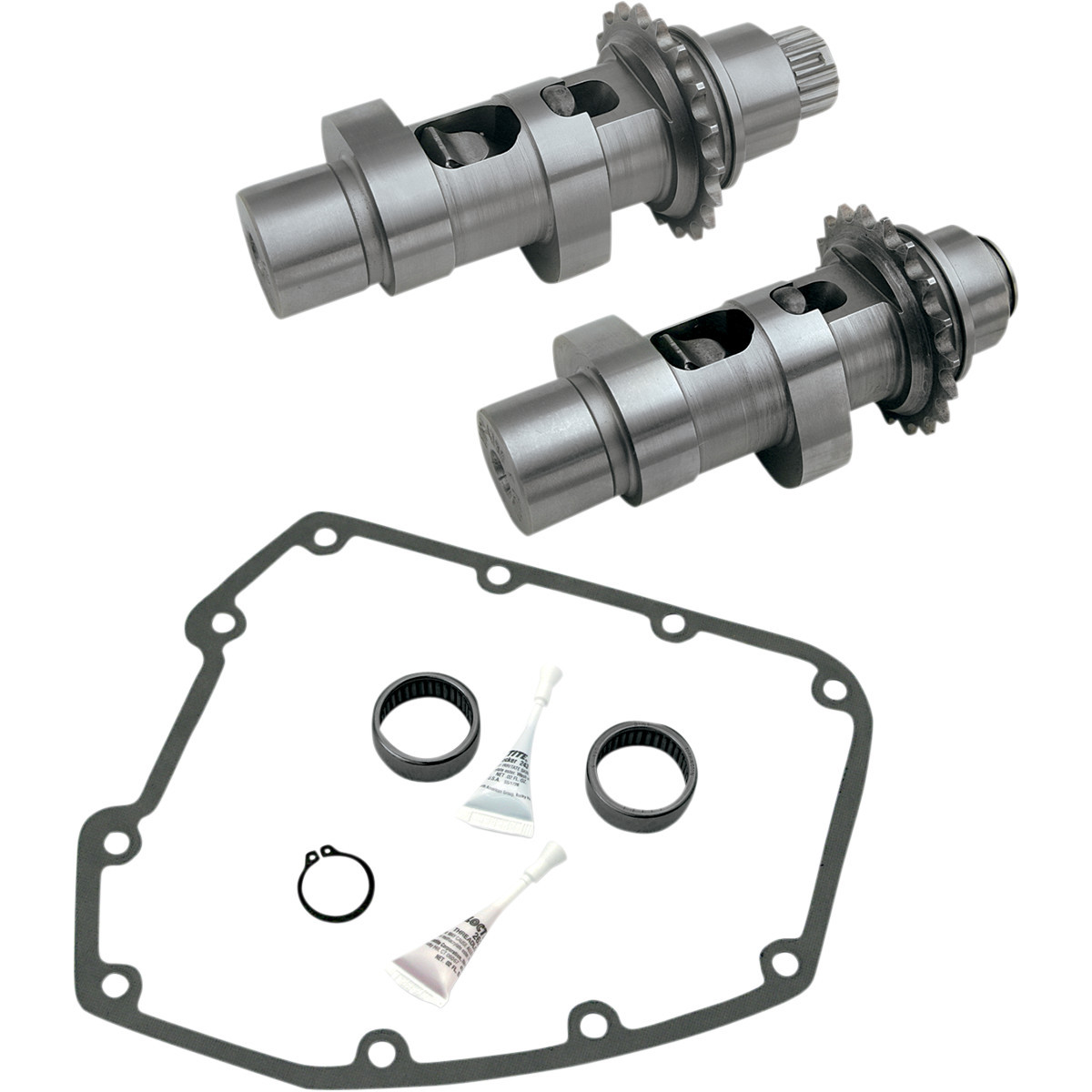

Camshaft - Easy Start - 640 Chain Drive - Twin Cam '07-'17 | Dyna '06
Features
- Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
- Intended for 95"/96"/103" and 110" engines with compression ratios between 10.5:1 and 11.5:1; strongest 3000 rpm - 6000 rpm range
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- Not for models with OEM compression releases.
- High-lift springs and adjustable pushrods required.
Specs
| Application | Intake |
| Exhaust Duration | 270° |
| Exhaust Lift at TDC | 0.214" |
| Intake Lobe Centerline | 107.5° |
| Intake Open | 25° |
| Riding Style | Street |
| Exhaust Lift | 0.640" |
| Exhaust Lobe Centerline | 110° |
| Intake Lift at TDC | 0.228" |
| Type | Chain |
| Model | Easy Start |
| Grind | 640 Series |
| Intake Close | 60° |
| Intake Lift | 0.640" |
| Product Name | Camshaft Kit |
| Units | Kit |
| Exhaust Open | 65° |
| Exhaust Close | 25° |
| Intake Duration | 265° |
