Jims #2283 - Door Puller - Transmission - '80-'06 Big Twin

Door Puller - Transmission - '80-'06 Big TwinFeaturesRemoves transmission door with gears and shaft attachedMade in the USAPuller will not damage door bearings.SpecsColor/FinishBlueRiding...

Jims #24017-80 - Sprocket Shaft Nut

Sprocket Shaft NutFeaturesHeavy-duty nut fits flywheel-side of sprocket shaft1-1/8"-16 threadsMade in the U.S.A.SpecsProduct NameNutRiding StyleStreetUnitsEachTypeSprocket ShaftDiameter - Thread...

Jims #1720 - Main Bearing Remover - 5-Speed

Main Bearing Remover - 5-SpeedFeaturesRemoves old bearing straight and will not damage the transmission caseCan be used without removing transmission from the bikeMade in the U.S.A...

Jims #24023-54 - Gear-Side Pinion Shaft Nut

Gear-Side Pinion Shaft NutFeatures5/8"-24 left-hand threadsSpecsDiameter - Thread Size5/8-24TypePinion ShaftRiding StyleStreetUnitsEachProduct NameNut

Jims #2234 - Primary Drive Lock Tool

Primary Drive Lock ToolFeaturesUse on all primaries between front primary chain and motor sprocketMade in the U.S.A.SpecsRiding StyleStreetApplicationPrimary (Drive)Product NameLocking...

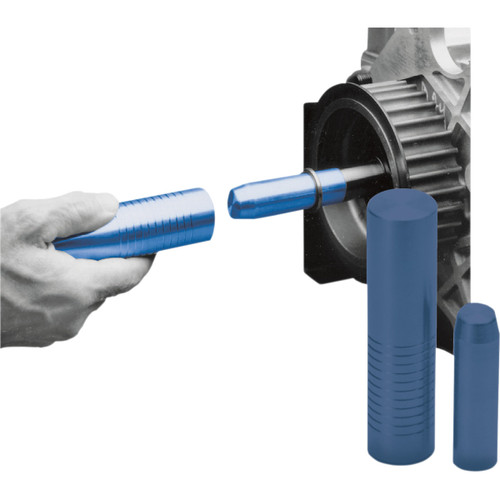

Jims #2256 - Gear Seal Installation - Drive - 5-Speed

Gear Seal Installation - Drive - 5-SpeedFeaturesUse to install main drive gear oil seal to the proper depth with transmission assembledIncludes protective sleeve for seal, which can be used to...

Jims #2233 - Tappet Tool - Oil Filter Plug

Tappet Tool - Oil Filter PlugFeaturesRemoves oil screen without removing exhaustUsed to remove the tappet oil screen plugMade in the U.S.A.SpecsStyleScrewProduct NameTappet ToolTypeFilter Plug...

Jims #1001 - Valve Guide Driver - Set

Valve Guide Driver - SetFeaturesThree piece set (3/8", 1/32", 5/16") used to remove or install valve guidesDesigned for guide removal and installation on all modelsMade in the U.S.A...

Jims #24016-80 - Pinion Shaft Nut - 3/4-20 Thread

Pinion Shaft Nut - 3/4-20 ThreadFeaturesHeavy-duty nut fits flywheel-side of pinion shaft3/4"-20 threadMade in the U.S.A.Check rod clearance.SpecsProduct NameNutRiding...

Jims #24331-36 - Wrist Pin Bushing - XL

Wrist Pin Bushing - XLFeaturesMachined from solid bronze bar stockHold concentricity to less than .0002"Lead-in edge for easy installationMade in the U.S.A.SpecsProduct NameBushingTypeWrist...

Jims #1284 - Holding Tool - Connecting Rod - V-Twin

Holding Tool - Connecting Rod - V-TwinFeaturesHolds the rods in place when reaming or honing the wrist pin bushingsMade in the USAFor most V-Twin and Buell Blast applications...

Jims #25581-70 - Cam Bushing - Big Twin

Cam Bushing - Big TwinFeaturesBushings are made from solid bronze bar stockMachined in one operation with a tolerance of .0002"Feature a lead-in for ease of installationMade in the U.S.A...

Jims #2047 - Fork Seal Installer - 41 mm

Fork Seal Installer - 41 mmFeaturesLightly grease to keep from scratching fork tubesUsed to install fork and dust sealsMade in the U.S.A.SpecsApplicationForkFork Tube Diameter41 mmProduct NameSeal...

Jims #1169 - Compression Release Guide - Twin Cam

Compression Release Guide - Twin CamFeaturesInstallation kit includes fixture, drill bit, spot face bit and thread-tapping toolSimply drill, spot face, tap and install compression release valvesWorks...

Jims #2260 - Sprocket Lock Tool - Big Twin

Sprocket Lock Tool - Big TwinFeaturesLock the transmission pulley for removing or installing pulley nutMade in the U.S.A.SpecsColor/FinishBlueProduct NamePulley LockApplicationTransmissionRiding...

Jims 1162 - Caliper Piston Remover

Brake Caliper Piston Remover Prevents damage to pistons and cylinders when installing new seals and wipers Holds pistons square in their cylinder bores during removal Designed for front and rear...

Jims #38515-90 - Tool - Clutch Spring Compressor

Tool - Clutch Spring CompressorFeaturesUsed to release clutch spring so retainer ring can be easily removed and installedMade in the USASpecsColor/FinishBlueProduct NameToolUnitsEachRiding...

Jims #38515-91 - Nut - Clutch Spring Compressor

Nut - Clutch Spring CompressorFeaturesUsed to release clutch spring so retainer ring can be easily removed and installedMade in the USAFor '91-'03 XL applications, compressor nut Part# DS-197061 must...

Jims 26326-62A - Feed Idler Oil Pump Gear - Big Twin

Oil Pump Component Oil Pump Component for Big Twin models

Jims #2280 - Alignment Tool - Cam Bearing/Bushing

Alignment Tool - Cam Bearing/BushingFeaturesUse to check the alignment of cam bearing to cam cover bushing to within 0.0003" of centerlineBinding of tool indicates misalignment of cam cover and...

Jims #24029-KIT - Sprocket Shaft Spacers - Set of 8

Sprocket Shaft Spacers - Set of 8FeaturesSpacers are machined to a 32-micron, burr-free finish for extended seal lifeMade to fit the sprocket shaft oil sealEight-piece kit contains one of each of the...

Jims #26346-36 - Oil Pump Shaft - Big Twin

Oil Pump Shaft - Big TwinFeaturesTop-quality replacement shaft precision-ground to tight tolerancesMade in the U.S.A.SpecsProduct NameDrive ShaftTypeOil PumpRiding StyleStreetUnitsEach

Jims #33334-85 - Transmission Sprocket Spacer - L'84-E'94 Harley-Davidson

Transmission Sprocket Spacer - L'84-E'94 Harley-DavidsonFeaturesSmooth finish for a longer seal life1.7" IDMade in the USASpecsLength0.850"Transmission Type5-SpeedRiding...

Jims #26315-68A - Oil Pump Drive Gear - Big Twin

Oil Pump Drive Gear - Big TwinFeaturesOil Pump Component for Big Twin modelsSpecsTypeOil PumpProduct NameGearRiding StyleStreetUnitsEach
